The Packet Analyzer enables rapid troubleshooting and maintenance of a wireless M-Bus network. Long time packet capturing and packet visualization for many wireless M-Bus configurations can be managed easily. The Wireless M-Bus Analyzer supports the monitoring and analyzing of Wireless M-Bus traffic according to EN 13757-4. This tool provides an easy to use graphical user interface for rapid troubleshooting and maintenance of your Wireless M-Bus network.
PA-iM871A: Wireless M-Bus traffic monitoring
Overview Software PA-iM871A<br>

Advanced Wireless M-Bus Analysis: Decryption, Dual Radio Monitoring, and Comprehensive Troubleshooting

The analyzer supports single radio and dual radio modes for monitoring of uplink and downlink channels with different physical settings in parallel. Decryption support enables to inspect also AES-128 bit encrypted packets. Flexible packet filtering and data visualization allows an easy and efficient way for troubleshooting and validation of complex wireless network configurations. With respect to the ETSI regulations a traffic monitor for duty cycle evaluation completes the list of supported features.

Kit Includings

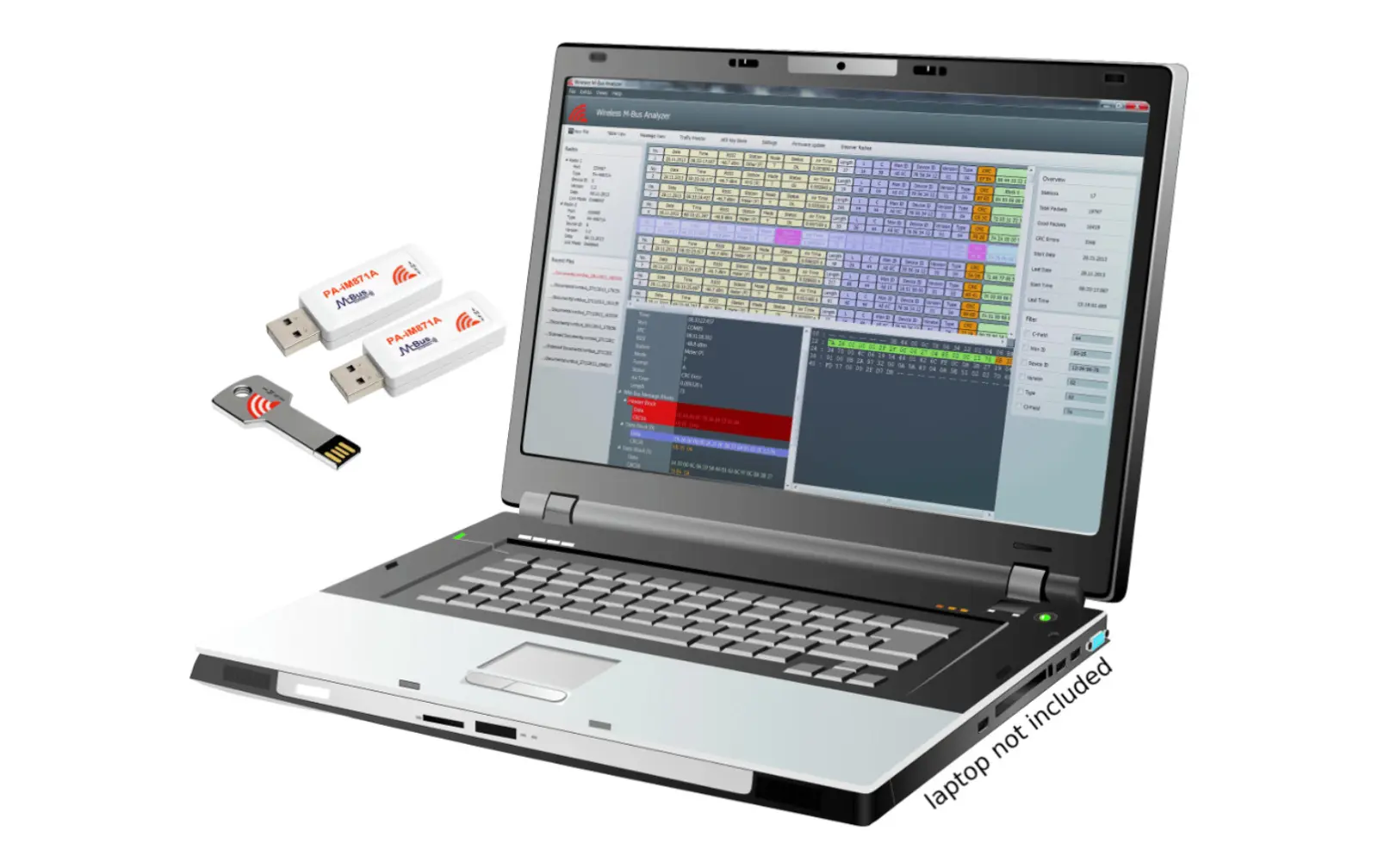

  • 2 x PA-iM871A USB Adapter
  • Software for Microsoft – Windows™ 7, 8, 10
  • User Guide

Application Areas

  • Smart Metering (EN 13757)
  • Data concentrators and reader
  • The Analyzer GUI supports the following Encryption Modes:

    Supported Encryption Mode<br>
  • The Analyzer GUI and radio module support the following Physical Layer Link Modes according to EN13757-2/-4/-5/-6:

    Supported Link Modes<br>
  • >> Scroll table horizontally

    Dual Radio Modesuitable for T2 and R2
    Packet Visualizationpacket content is visualized in multiple ways
    Packet Filterfocus on specific message types or network nodes for fast and easy analyzing
    Message Parserdeep packet analysis including M-Bus application layer (EN 13757-3)
    Traffic Monitorevaluate the Duty Cycle of single Wireless M-Bus nodes
    AES Decryptiondecryption support for multiple AES-128 bit Keys
    Operating SystemsMicrosoft Windows™ 7, 8, 10
  • >> Scroll table horizontally

    Frequency range863 Mhz to 870 MHz
    Output powertyp. +10 dBm (EIRP)
    Receiver sensitivityup to -110 dBm
    Data rates4.8 kbps, 32.768 kbps, 100 kbps
    Operating voltage4.4 V to 5.25 V
    Supply currenttyp. 37 mA (RX)typ. 60 mA (TX @ +10dBm)
    Dimension (LxWxH)approx. 46 x 20 x 11mm³
    Operating temperature-20°C to +70°C
    Operation systemsMicrosoft Windows™ 7, 8, 10
    Antennaintegrated chip antenna
